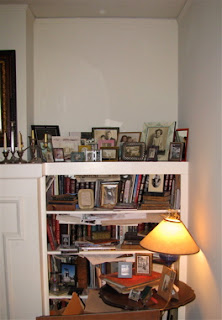

In my last post about this project, I described the method I use to create a 3D "map" of the spaces I'm working with. Below, you can see how I use the computer model to derive templates for workpieces that have to fit into odd areas. I'll be extending the mantel shelf you see in the photo above over to the left-hand wall. Since the left-hand corner is about 5 degrees from square and slightly curved, it took some careful templating to make a piece that would fit just right.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEj_ReZtUxMIQwUgE5ByTzU26y3IO2_qlAh8xn57D_kNlU3kaSNjJY-cYktTh5gK5xgc4V9bhhJQGSkWLgcK6Q3AhZ6gpC_yLv35Fq_64QsIElj1uN_anzJe1_KMPm9hSgx3JrHe/s320/wr2.jpg)

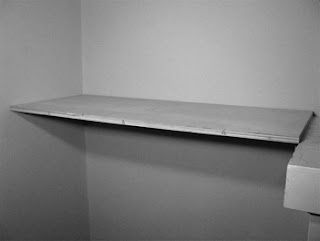

This last photo shows the piece which will form the top of the new mantle shelf. If you viewed this piece from the top, you'd see that its ends are far from square and parallel. When something like this is fit properly, though, one doesn't see how wonky it really is.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEi4fSqmhUEAsWIpnKUbO5vD3P3QvH885BhaXel_LaCanrzv_nfwLnQR0LNIC8CT2oIw4lfsfuka6-akDuhyrAQ6BFp-srnKNCXjZUP81TSQEroq5QX_fRwkvq6XykJ98abNNjnT/s320/wr3.jpg)
